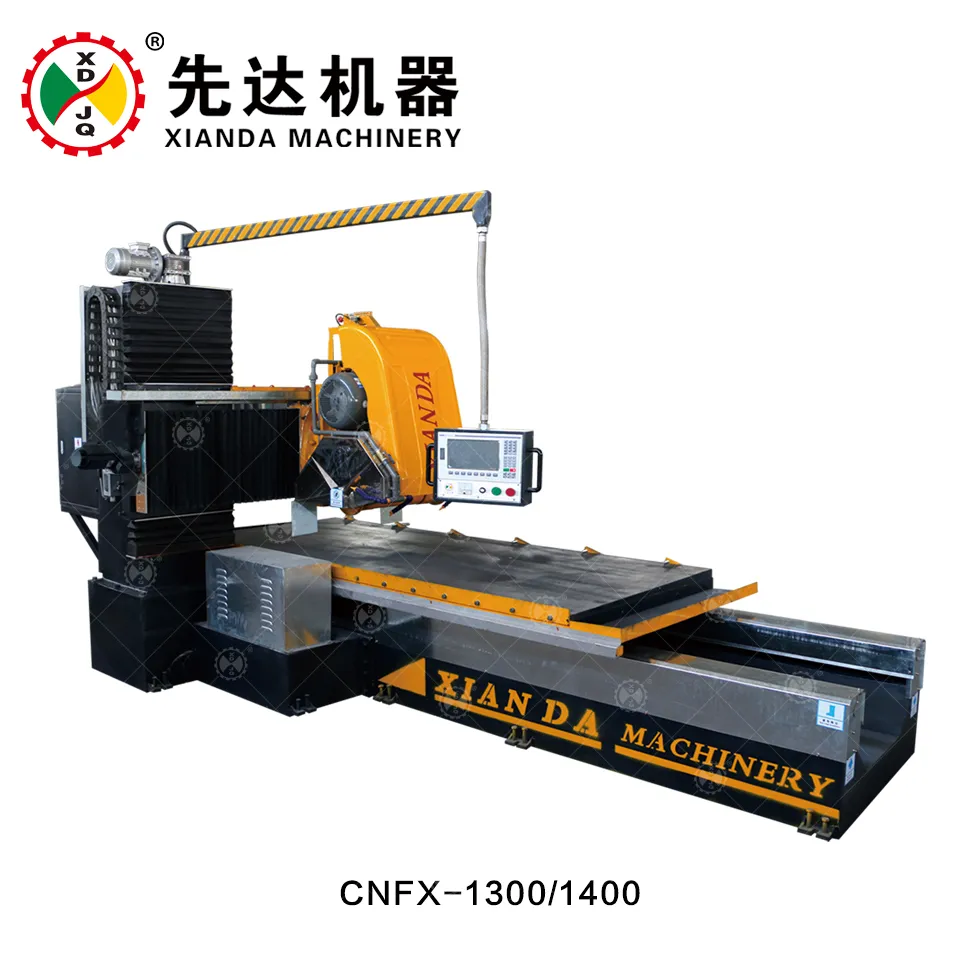

Automatic Computerized Special Shape Linear Railing Column Solid Pillar Balustrade Banister Vase CNC Stone Cutting Profiling Lathe Machine

Automatic Computerized Special Shape Linear Railing Column Solid Pillar Balustrade Banister Vase CNC Stone Cutting Profiling Lathe Machine

CNFX-1300/1400 adopts CNC system. It automatically profiling through diamond circular saws to cut stone with program,use
SHARE
Send inquiry

Description

Basic Info
Model NO. Cnfx-1300
Cutting Ability High Speed
Control CNC
Certification ISO
Use for Linear Profiling,Balustrade Cutting
Blade Diameter 300-600mm
Max Lifting Travel of Cutting Frame 700mm
Worktable Diamension 3000X1300mm
Main Motor 15kw
Gross Motor 18kw
Gross Weight 5000kg
Water Consumption 6m³/H
Specification 5500x2300x1800mm
Trademark XIANDA
Origin Fujian, China
HS Code 84641090
Production Capacity 1000 Sets/Year
Product Description

Automatic Computerized Special Shape Linear Railing Column Solid Pillar Balustrade Banister Vase CNC Stone Cutting Profiling Lathe Machine

CNFX-1300/1400 adopts CNC system. It automatically profiling through diamond circular saws to cut stone with program,uses inverter to control up-down rising and left-right feeding ,adjusts the speed according to the stone material.This machine adopts CNC system,higher degree of automation,higher precision cutting;using double-blades designing,with higher cutting efficiency,higher stability,easy-operation to suit for lines,arc-shaped lines,Roman column,etc.Remark:If choosing rotating worktable,the processing of arc-shaped lines can be done.
ParameterUnitCNFX-1300CNFX-1400
Blade diameter mmφ300-φ600φ300-φ600
Max lifting travel of cutting frame mm700700
Worktable dimension mm3000x13003500x1400
Main motor kw1515
Gross motor kw1818
Outline dimension mm5500x2300x18006000x2400x1800
Gross weight kg50005500
Water consumption m³/h66

Product Show

Automatic Computerized Special Shape Linear Railing Column Solid Pillar Balustrade Banister Vase CNC Stone Cutting Profiling Lathe Machine

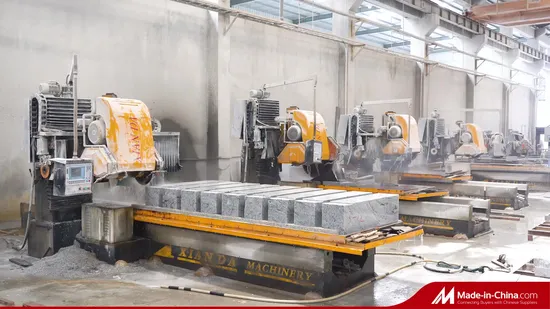

Factory Overviews

Automatic Computerized Special Shape Linear Railing Column Solid Pillar Balustrade Banister Vase CNC Stone Cutting Profiling Lathe Machine


Certifications

Automatic Computerized Special Shape Linear Railing Column Solid Pillar Balustrade Banister Vase CNC Stone Cutting Profiling Lathe Machine



Our Services

Automatic Computerized Special Shape Linear Railing Column Solid Pillar Balustrade Banister Vase CNC Stone Cutting Profiling Lathe Machine


We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.

32 years' Manufacture Experience.Special shape stone cutting machine more than 70% market occupied in China.

Top 5 stone cutting machine manufacturer with ISO&CE certificate.

Products are selling to more than 20 countries, with more than 10 years overseas experience.Use of top brands to ensure high quality.

We can provide competitive price and discount for large quantity.Strength supply capacity ,more 1000 sets per year.

After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.

We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.
